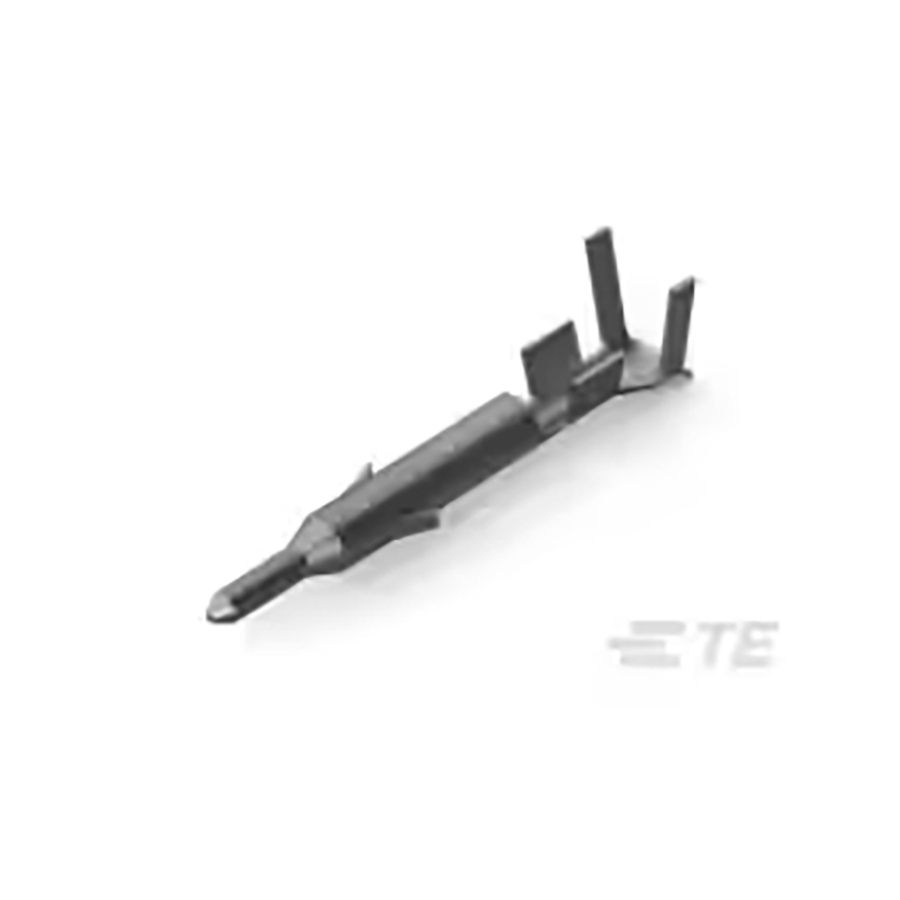

770903-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770903-1
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 17.04 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 1.72 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 2.46 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 9.5 A |
| Max Current Rating | 11.2 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Number of Contacts | 1 |
| Connector Type | Pin |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 11.2 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Insulation Diameter | 2.3876 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 102897
Distributors
pcbx
pcbxUnit Price$0.23234
Ext.Price$0.23234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23234 | $0.23234 |
| 10 | $0.11617 | $1.16170 |
| 50 | $0.08936 | $4.46800 |
| 100 | $0.06874 | $6.87400 |
| 500 | $0.05288 | $26.44000 |
| 1000 | $0.04068 | $40.68000 |
| 3000 | $0.03129 | $93.87000 |
| 5000 | $0.02884 | $144.20000 |
| 10000 | $0.02658 | $265.80000 |
| 30000 | $0.02450 | $735.00000 |
| 50000 | $0.02257 | $1128.50000 |
